Overview
We have developed five commonly used products in the EVA series. This product is made of highly elastic material and can replace styrofoam and rubber rings. Compared to styrofoam and rubber rings, it has a very high cost performance and resilience comparable to styrofoam. It can be used for products that are repeatedly opened and reused, and has strong chemical compatibility. Due to its compatibility with styrofoam and rubber rings, it can also be used for food contact products.
TECHNICAL DATE SHEET

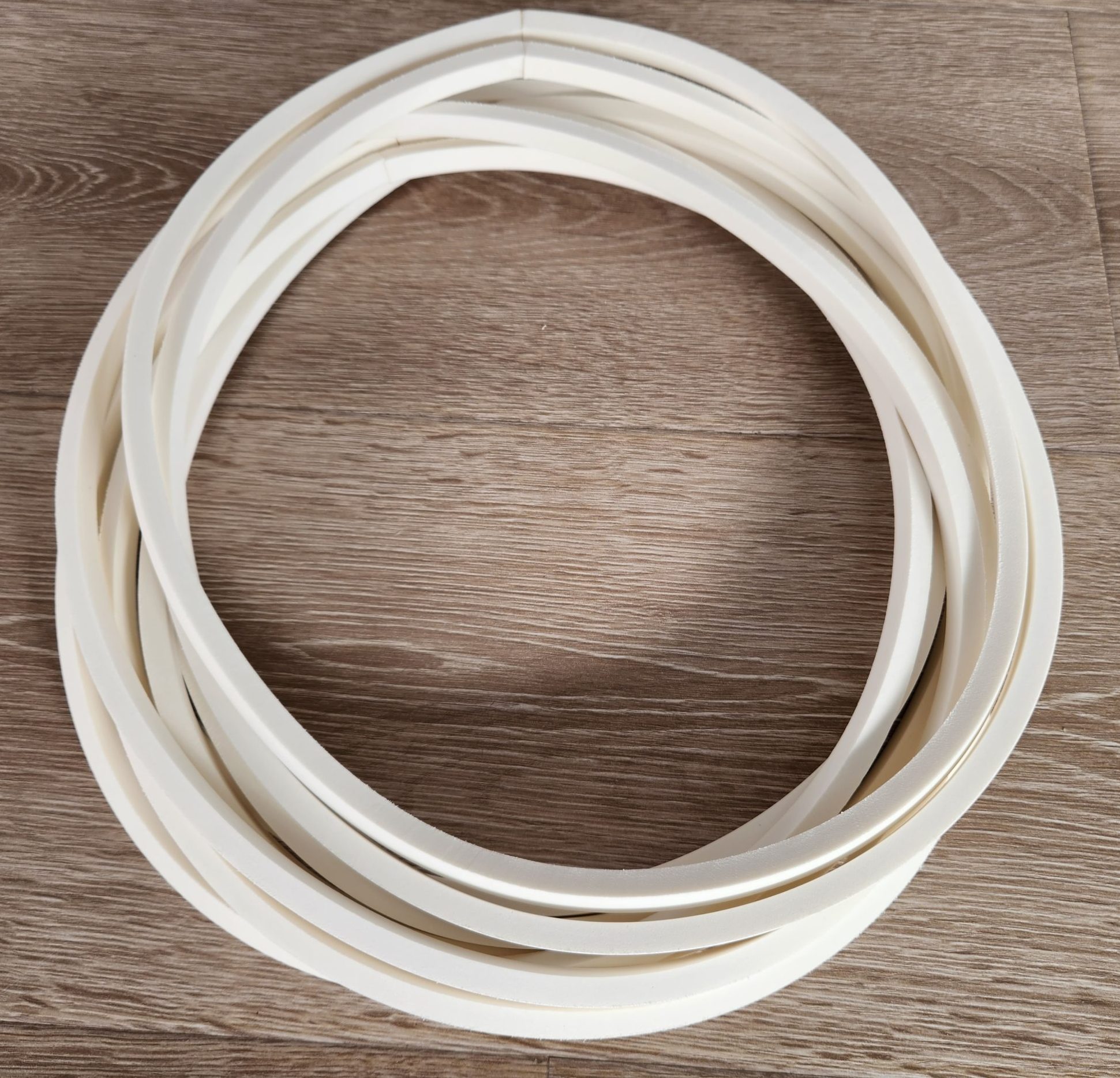

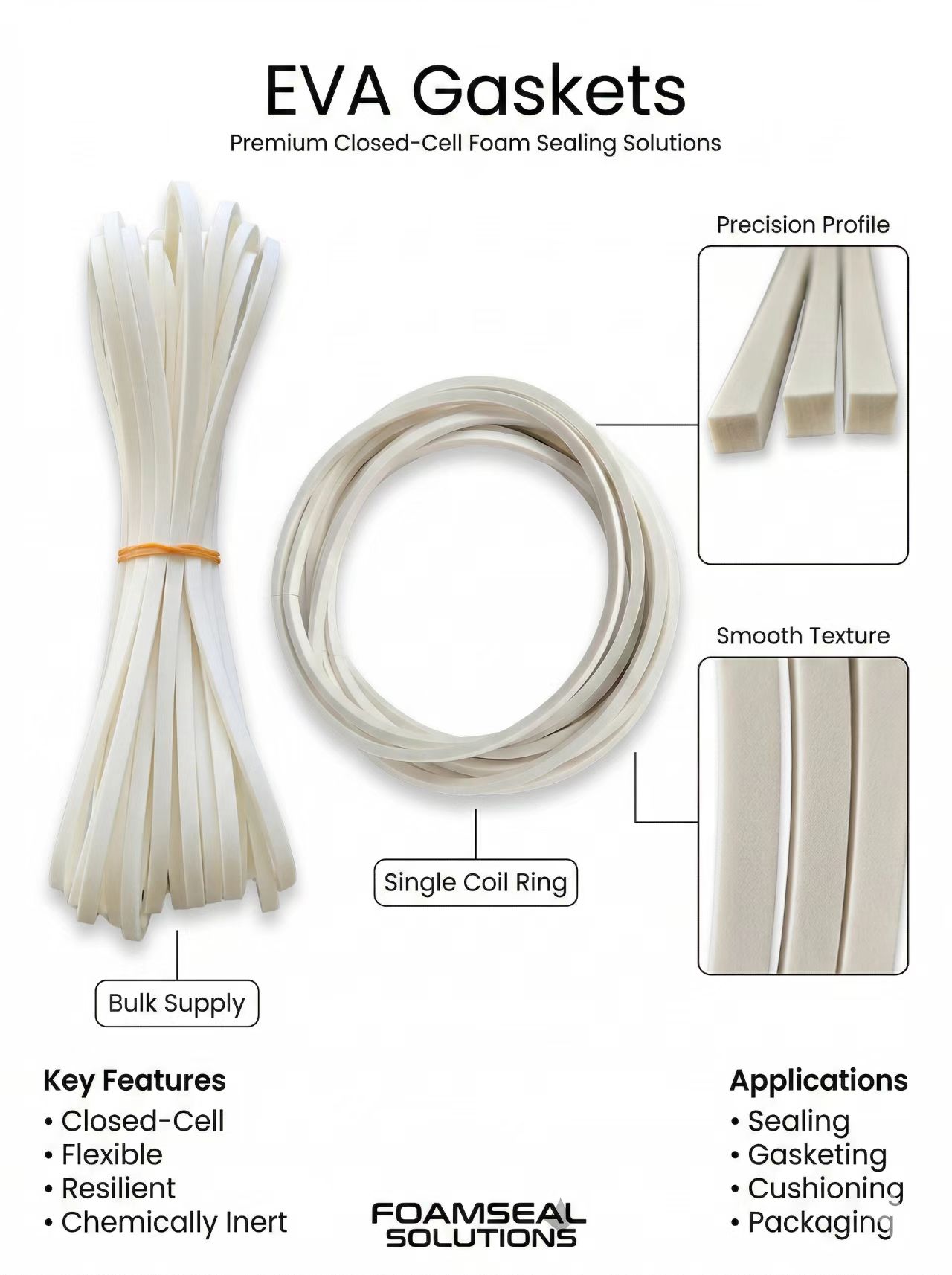

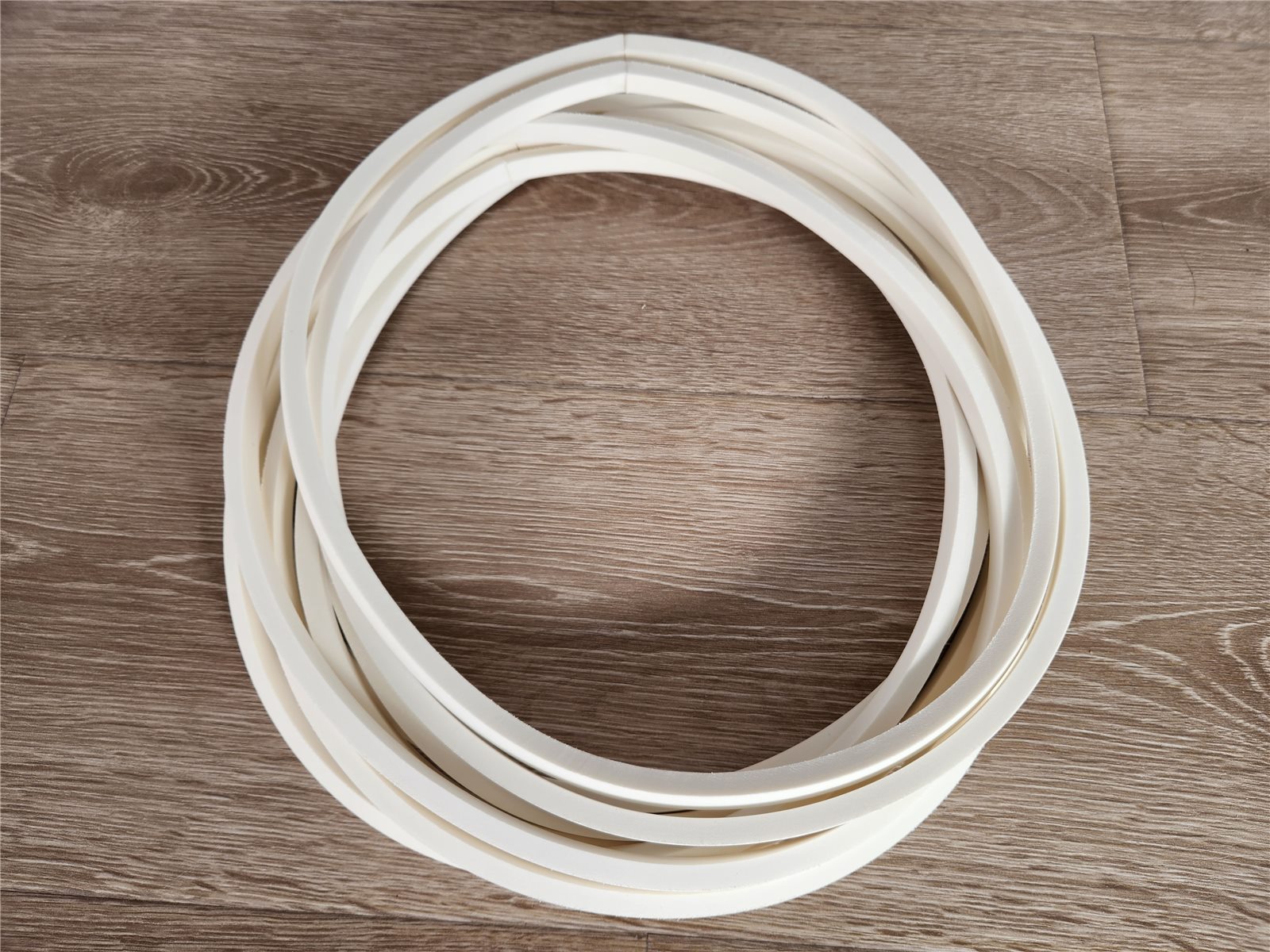

Product Name: ③EVA food grade high elastic material
PRODUCTION DATE: September 2023
| ITEMS | |
| Density | 150±5 kg/m³ |
| Shaw C hardness | 45-50° |
| Tensile strength | 1.9Mpa |
| Elongation at break | ≥210% |
| Main components | EVA\LDPE\CACO3 |
| Immersion test | No chemical reaction with MEK
Toluene immersion is insoluble and has no chemical reaction, with slight swelling. After air drying, the shrinkage rate is small (chemical properties are better than rubber rings) |
| Storage time | 3 years (no sunlight exposure) |
Comparison of Common Market Products
| EVA sealing ring | NR rubber ring | PVC styrofoam | |
| Manual gasket | √ | √ | × |
| Equipment Automation | √ | Unable to automate gaskets | High environmental requirements
High equipment cost |
| Smell | √ | Strong odor | √ |
| Chemical | √ | Toluene, xylene
Immersion and direct dissolution |
Toluene, xylene
Immersion and direct dissolution |
| Density | 85-200kg/m³ 4-13g/m |
500kg/m³ 20-35g/m |
11-15g/m (determined by the amount of glue) |
| Storage Stability | 3 years | 1 year | 3 years |
| Price | ü | Price is 8 times higher than EVA | Price is 6 times higher than EVA |
| Resilience | Multiple use is not recommended | √ | √ |
Details
| REF | WATLA |
|---|---|
| Composition | 87% Polivinyl, 6,5% PES, 6,5% CO |
| Width | 140 |
| Height | 100 |
